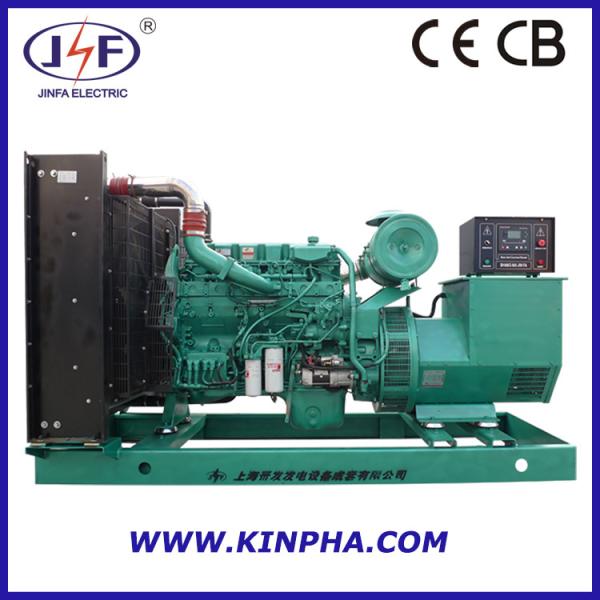

60Hz Cummins Diesel Generator Set 20kW -1400kW

Product Categories

Shanghai Jinfa Generator Sets Co.,Ltd.

Contact Now

60Hz Cummins Diesel Generator Set 20kW -1400kW

Ask Lasest Price
Brand Name :	Kinpha or OEM brand
Certification :	CE/CB/ISO9001/ISO14001
Model Number :	JC20-2 ~ JC1400-2
Price :	To be discussed by mail
Delivery Time :	20-35 working days after received your payment
Payment Terms :	T/T , L/C at sight
Supply Ability :	200 set per month

Add to Cart

Product Details
Company Profile

60Hz Cummins Diesel Generator Set 20kW -1400kW

60Hz Cummins Diesel Generator Set 20kW -1400kW

Jinfa-Cummins series is positioned to its value of:

 Leading adaptability in the industrial area

 Reliability&Lifetime low cost operation and maintenance

 Globally technical & service support

Genset Standard Configuration

 Assembled by Cummins diesel engine and world famous brand alternator

 Radiator and fan with safety guard

 Automatic control panel and electricity output switch cabinet

 Float battery charger and solenoids switch as standard supply scope

 Strong and durable hi-strength base frame

Cummins Engine

The new design of the electronic speed regulation system of Cummins diesel engine has the following features:

 4 valves per cylinder, spring separately. Water; exhaust gas turbo, four stroke, the inlet water for cold air type, direct fuel injection systems.

 PT fuel injection system with advanced EFC electronic governor, diesel engine steady adjustable rate can be set between 0 to 5% (constant speed), which can realize remote operation controland easy to realize automatic control, torque synchronous excitation system can make the engine quickly recover rotation speed under sudden load increase.

 The electric heater in engine intake manifold allows quick/reliable engine start under low temperature and can reduce greenhouse gas emissions. Achieve the emission standards prescribed by the state government.

 The combustion process was optimized by using advanced technology, significantly reduce the fuel consumption, no overhaul time more than 15000 hours,industry-leading level;lower fuel consumption,the use oflower cost, higher efficiency and security.

 Better starting performance at low temperature.

Alternator(Stamford, Leroy Somer, Mecc Alte, Marathon, etc)

Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG(optional), in with superior performance in generating non-linear loads.

Form: single/double bearing

Protection: IP23(IP44 optional)

Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

Over speed: 2250rpm

Insulation Class: H

Mechanical structure: steel base frame

JC SERIES(60Hz), 416-480V, 20-1400kW
Genset Model	Standby Power		Prime Power		Engine Model	Dimension	Weight
Genset Model	kVA	kW	kVA	kW	Engine Model	mm	Kg
JC*20-2	25	20	23	18	4B3.9-G2	1975x735x1272	765
JC*25-2	31	25	28	23	4B3.9-G2	1975x735x1272	765
JC*30-2	38	30	34	27	4BT3.9-G2	2080x761x1418	930
JC*38-2	48	38	43	35	4BT3.9-G2	2080x761x1418	930
JC*60-2	75	60	68	55	4BTA3.9-G2	2180x805x1408	850
JC*75-2	94	75	85	68	4BTA3.9-G11	2180x805x1408	900
JC*100-2	125	100	114	91	6BT5.9-G2	2425x845x1425	1100
JC*120-2	150	120	136	109	6BTA5.9-G2	2620x845x1470	1100
JC*125-2	156	125	142	114	6BTAA5.9-G2	2620x845x1470	1100
JC*150-2	188	150	170	136	6BTAA5.9-G12	2620x845x1470	1100
JC*175-2	219	175	199	159	6CTA8.3-G2	2690x855x1560	1600
JC*190-2	238	190	216	173	6CTAA8.3-G2	2790x1055x1640	1700
JC*250-2	313	250	284	227	6LTAA8.9-G3	2890x1055x1780	1870
JC*300-2	375	300	341	273	QSM11-G2	3380x1060x1780	2500
JC*350-2	438	350	398	318	6ZTAA13-G3	3380x1060x1780	3000
JC*400-2	500	400	455	364	6ZTAA13-G2	3380x1060x1780	3500
JC*400-2	500	400	455	364	QSZ13-G2	3380x1060x1780	3500
JC*450-2	563	450	511	409	QSZ13-G3	3380x1060x1780	3500
JC*280-2	350	280	313	250	NTA855-G1	3030x1320x1977	3280
JC*320-2	400	320	363	290	NTA855-G1B	3426x1320x1977	3415
JC*350-2	438	350	400	320	NTA855-G3	3426x1320x1805	3500
JC*385-2	481	385	438	350	KTA19-G2	3575x1277x2062	3930
JC*460-2	575	460	525	420	KTA19-G3	3677x1245x2100	4300
JC*515-2	644	515	588	470	KTA19-G3A	3677x1245x2100	4300
JC*515-2	644	515	588	470	KTA19-G4	3677x1245x2100	4300
JC*550-2	688	550	625	500	KTAA19-G5	4055x1528x2235	4700
JC*600-2	750	600	NA	NA	KTAA19-G6A	3690x1335x2095	4185
JC*700-2	875	700	800	640	KT38-G	4200x1750x2420	7350
JC*825-2	1031	825	938	750	KTA38-G2	4250x1750x2420	7380
JC*935-2	1169	935	1063	850	KTA38-G2 A	4250x1950x2420	7380
JC*1035-2	1294	1035	1175	940	KTA38-G4	4430x2028x2388	7400
JC*1140-2	1425	1140	NA	NA	KTA38-G9 Standby	4400x2090x2200	7450
JC*1265-2	1581	1265	1438	1150	KTA50-G3	5770x2133x2319	8900
JC*1400-2	1750	1400	1563	1250	KTA50-G9	5250x2170x2540	9400

60Hz Cummins Diesel Generator Set 20kW -1400kW

60Hz Cummins Diesel Generator Set 20kW -1400kW

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shanghai Jinfa Generator Sets Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more 1. Open generator products from this supplier

Find Similar Products By Category:

Packaging & Paper

Hot Searches:

Shanghai Jinfa Generator Sets Co.,Ltd.

60Hz Cummins Diesel Generator Set 20kW -1400kW

60Hz Cummins Diesel Generator Set 20kW -1400kW

60Hz Cummins Diesel Generator Set 20kW -1400kW

60Hz Cummins Diesel Generator Set 20kW -1400kW

Company Profile

1. Being one professional generator sets manufacturer in China, Shanghai Jinfa Electric Co., Ltd. is a high-tech and

modern corporation that specializes in manufacturing, R&D, and distribution, with a history of 20 years.

2. Since year 1996, the company has been appointed as the Original Equipement Manufacturer (OEM) by famous engines, like Perkins (UK), Cummins, Volvo, MAN, etc. and by famous alternators, like Leroy-Somer, Marathon, Mecc Alte, etc.

4 .The company has been certified by ISO9001, ISO 14001, ISO 18001. And the products have passed CE MD and EMC directives.

5. Communication, Quality and innovation are key values of the company. With efficient and interactive communication, we do understand market standards and our customers’ demand.

6. With qualified products, we have built our brand image in different markets. New innovation development with our agents keeps us always being advanced and competitive.

7. So far, Jinfa generator sets and its power solutions have been widely applied in power plants, chemical plants, mines, construction, telecommunications stations and highways, etc.

We, Shanghai Jinfa Electric Co., Ltd. do welcome new partners to join our family and grow up together.
