60 Hz Perkins Diesel Generator Set 10kW -1500kW

Ask Lasest Price
Brand Name :	Kinpha or OEM brand
Certification :	CE/CB/ISO9001/ISO14001
Model Number :	*JP10-2 ~ JP1500-2*
Price :	To be discussed by mail
Delivery Time :	25-35 days since deposit date
Payment Terms :	T/T , L/C at sight
Supply Ability :	200 set per month

Add to Cart

Product Details
Company Profile

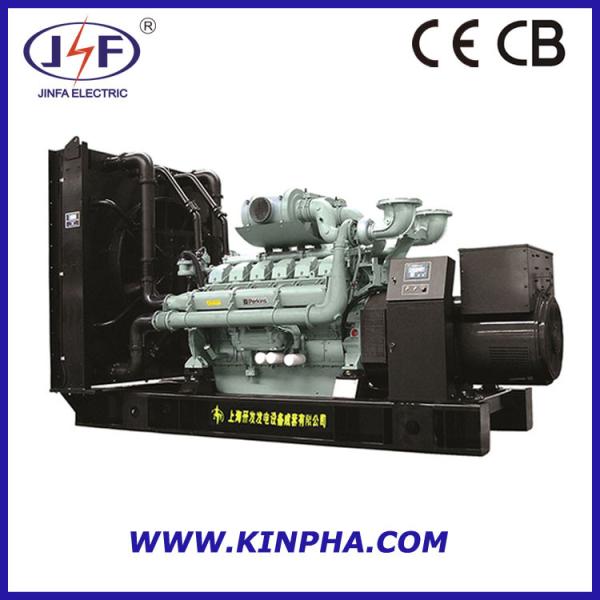

60 Hz Perkins Diesel Generator Set 10kW -1500kW

Jinfa-Perkins series is positioned to its value of:

 Leading adaptability in the industrial area

 Reliability&Lifetime low cost operation and maintenance

 Globally technical & service support

Genset Standard Configuration

 Assembled by Perkins diesel engine and world famous brand alternator

 Radiator and fan with safety guard

 Automatic control panel and electricity output switch cabinet

 Float battery charger and solenoids switch as standard supply scope

 Strong and durable hi-strength base frame

Perkins Engine

British PERKINS ENGINE COMPANY LIMITED created by entrepreneur Frank•Perkins in British Peterborough in 1932,whichis one of the world’s leading manufacturers of engine.Service Network covers more than 180 countries and areas, all outlets uphold the most stringent standards, to assure that the customers in every corner of the world can obtain the best quality of service. Till now, their 400 series and some of the 1100 series engine made in Wuxi China, all the rest models are all made in India or UK.

Alternator (Stamford, Leroy Somer, MeccAlte, Marathon, etc)

Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG(optional), in with superior performance in generating non-linear loads.

Form: single/double bearing

Protection: IP23 (IP44 optional)

Balance: rotator balance is in accordance with ISO1940 and NFC51-112 standard

Over speed: 2250rpm

Insulation Class: H

Mechanical structure: steel base frame

JP SERIES(60Hz), 416-480V, 10-1500kW
Genset Model	Standby Power		Prime Power		Engine Model	Dimension	Weight
Genset Model	kVA	kW	kVA	kW	Engine Model	mm	Kg
JP*10-2	13	10	11	9	403D-11G	1346x500x1090	310
JP*13-2	16	13	15	12	403D-15G	1430x500x1150	375
JP*15-2	19	15	17	14	403A-15G2	1435x500x1150	375
JP*21-2	26	21	24	19	404D-22G	1611x560x1191	550
JP*28-2	35	28	31	25	404D-22TG	1757x700x1323	678
JP*30-2	38	30	34	27	404D-22TAG	1757x700x1323	700
JP*30-2	38	30	34	27	1103A-33G	1837x700x1270	800
JP*47-2	59	47	54	43	1103A-33TG1	1970x700x1350	860
JP*55-2	69	55	63	50	1103A-33TG2	2200x700x1350	1050
JP*55-2	69	55	63	50	1104D-44TG1	2050x700x1350	910
JP*65-2	81	65	74	59	1104A-44TG1	2200x700x1350	1050
JP*65-2	81	65	74	59	1104D-E44TG1	2200x700x1350	1050
JP*80-2	100	80	91	73	1104A-44TG2	2200x700x1350	1050
JP*80-2	100	80	91	73	1104D-E44TAG1	2200x700x1350	1050
JP*100-2	125	100	114	91	1104C-44TAG2	2233x850x1435	1360
JP*100-2	125	100	114	91	1104D-E44TAG2	2600x850x1450	1360
JP*135-2	169	135	152	122	1106A-70TG1	2567x800x1470	1375
JP*143-2	179	143	169	135	1106D-E70TAG2	2850x850x1830	1750
JP*150-2	188	150	169	135	1106A-70TAG2	2850x855x1526	1574
JP*175-2	219	175	200	160	1106A-70TAG3	2850x850x1830	1830
JP*175-2	219	175	200	160	1106D-E70TAG4	2850x850x1830	1830
JP*200-2	250	200	NA	NA	1106D-E70TAG5	2840x1050x1830	1830
JP*215-2	269	215	245	196	1506A-E88TAG2	2979x1052x1695	2333
JP*250-2	313	250	281	225	1506A-E88TAG3	2979x1052x1695	2333
JP*275-2	344	275	313	250	1506A-E88TAG4	3080x1091x1700	2495
JP*300-2	375	300	338	270	1506A-E88TAG5	3080x1091x1700	2495
JP*350-2	438	350	400	320	2206C-E13TAG2	3460x1150x2029	2980
JP*350-2	438	350	400	320	2206D-E13TAG2	3460x1150x2029	2980
JP*400-2	500	400	438	350	2206A-E13TAG6	3460x1150x2029	3150
JP*400-2	500	400	438	350	2206D-E13TAG3	3460x1150x2029	3150
JP*450-2	563	450	500	400	2506C-E15TAG1	3780x1268x2020	3760
JP*450-2	563	450	500	400	2506D-E15TAG1	3780x1268x2020	3760
JP*500-2	625	500	569	455	2506C-E15TAG3	3780x1268x2020	3760
JP*550-2	688	550	NA	NA	2506C-E15TAG4	3780x1268x2020	3760
JP*550-2	688	550	625	500	2806C-E18TAG1A	3745x1526x2180	4455
JP*600-2	750	600	681	545	2806C-E18TAG3	3745x1526x2180	4455
JP*660-2	825	660	750	600	4006-23TAG2A	4038x1690x2150	6165
JP*740-2	925	740	841	673	4006-23TAG3A	4038x1690x2150	6250
JP*880-2	1100	880	1000	800	4008TAG2	4736x2265x2256	7450
JP*1100-2	1375	1100	1250	1000	4012-46TWG2A	4805x2100x2297	9050
JP*1200-2	1500	1200	1364	1091	4012-46TWG3A	4805x2100x2435	9100
JP*1325-2	1656	1325	1506	1205	4012-46TAG2A	4805x2100x2435	9100
JP*1500-2	1875	1500	1705	1364	4012-46TAG3A	4900x2100x2435	9200
